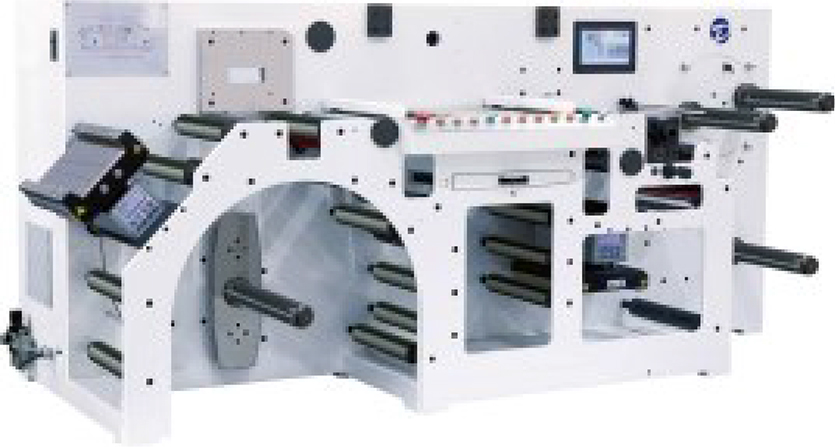

SLITTER

DCYFQ-450

Feature

• - Unwinding unit adopt photoelectric web guide system, with high precision. Control mode in two steps: manual an automatic.
• - Rewinding way: centre coiling
• - The tension control of unwinding unit and rewinding unit is adopt automatic tension control system; the control modes are tension feedback control and taper control.
• - The machine keep round cutter and flat cutter two tools, with reliable quality, easy to adjust.
• - The slitter has fixed length automatic stop and the length meter automatically functions.
• - The Slitter has trimming device, the edge material discharged by the fan.
• - The machine is applicable for the slitting operation for the varies of thin coils of narrow band (insulating materials, mica tape, film, etc.)

Technical

• 1. Provide signal, web path & stop, start signal for Luster
• 2. Servo motor with Inovance brand
• 3. Web Guide: 2sets Eurodow Brand
• 4. Max. Web Width: 450mm
• 5. Min. Slitting Width: 20mm
• 6. Max. Slitting Speed: 350m/min
• 7. Automatic Tension System
• 8. Max. Unwinding Dia.: 800mm
• 9. Max. Rewinding Dia.: 450mm
• 10. Slitting Cutter: 6 sets circular knives / razor blade
• 11. Total 3 rewinding shaft - Up Rewinding shafts are Turret Type
• 12. Standard 3inch dia. for rewinding and unwinding airshafts
• 13. Blower for Matrix
• 14. Four Servo Motor Machine
• 15. Voltage: 380 V ,50HZ, Air Source : 0.4~0.6 mpa

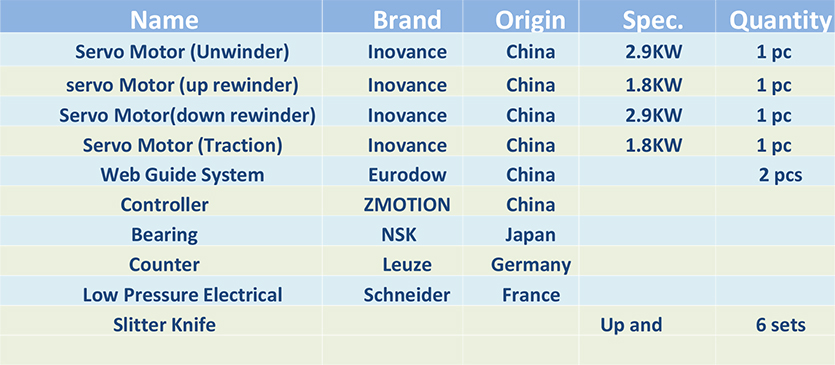

Electrical Components

Principles

• 1. Paper slitting machine to the entire volume or the entire printing material for the cut of a fixed length, such as supermarket labels, must use fixed-length slitting control
• 2. Slitting length can be set continuously, if it’s error of the actual slitting length, it’s easy to calibrate by the way of set the parameters.
• 3. The slitting control of paper slitting machine is in 2 modes: static slitting and dynamic slitting.
• - Static slitting: Accurately stop when the set length arrives, and then static cutting, and restart operation after cutting.
• - Dynamic slitting: without stopping but send slitting signal when the set length arrives, and then dynamic cutting directly on the process of material movement

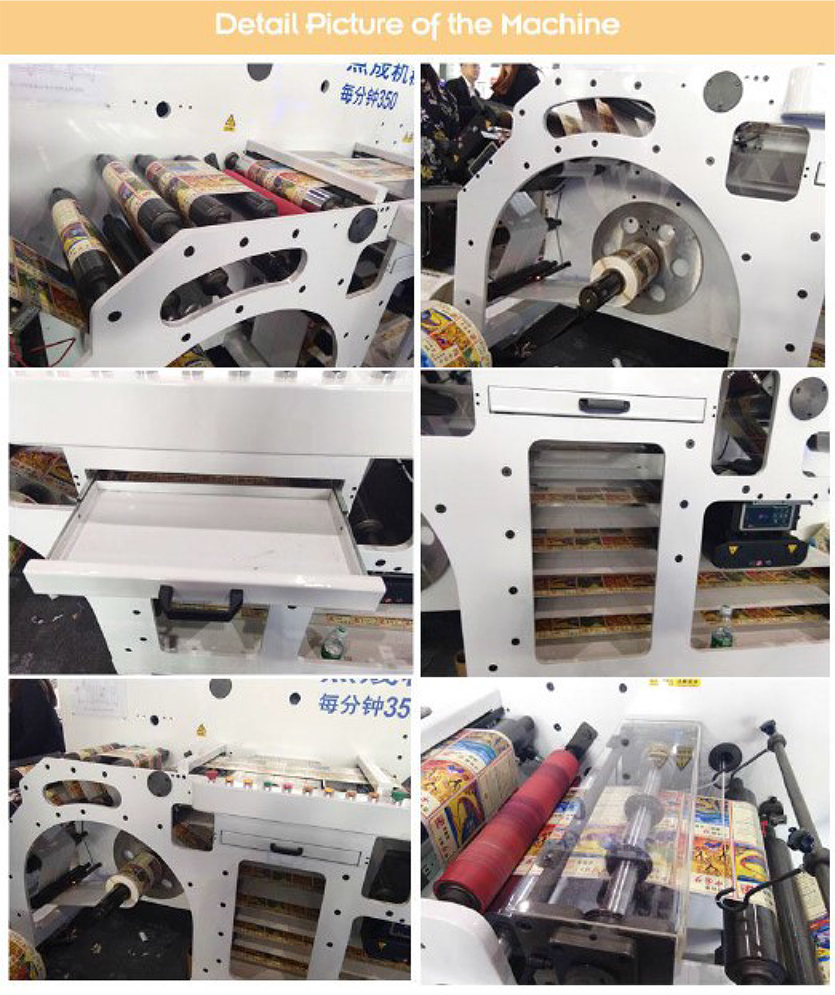

DETAIL PICTURE
